$21.72 On Hold

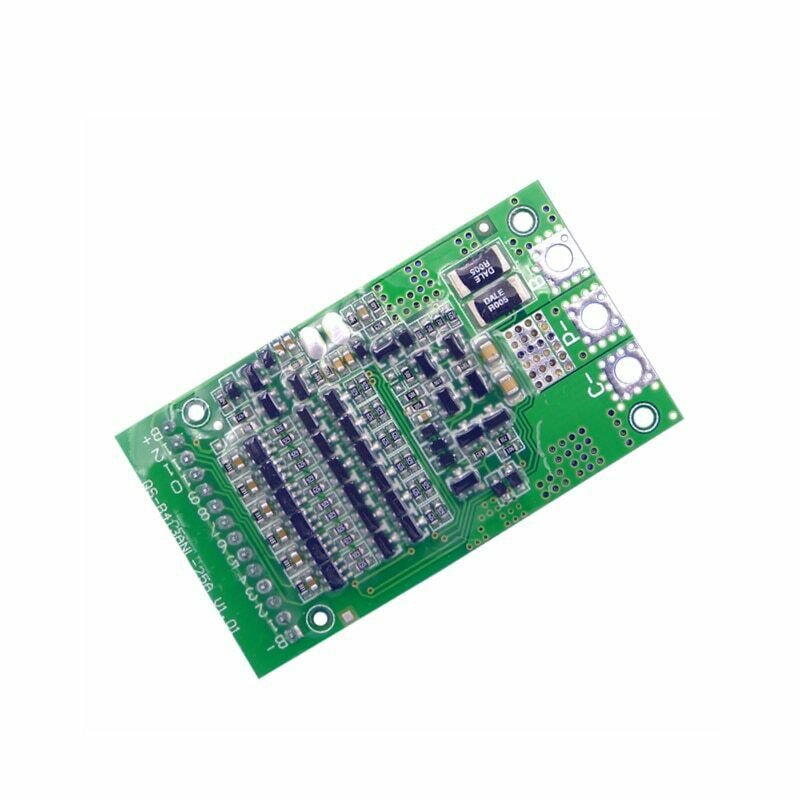

BMS 6S 7S 8S 9S 10S 11S 12S 13S 4.2V 25A Adjustable BMS Lithium 18650 Protection

BMS 6S 7S 8S 9S 10S 11S 12S 13S 4.2V 25A Adjustable BMS Lithium 18650 Protection

5 available

Details

Shipping: Australia: free (more destinations)

Condition: Brand new

Returns: 7 days, buyer pays return shipping (more)

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

  • BMS 6S 7S 8S 9S 10S 11S 12S 13S 4.2V 25A Adjustable BMS Lithium 18650 Protection
  • BMS 6S 7S 8S 9S 10S 11S 12S 13S 4.2V 25A Adjustable BMS Lithium 18650 Protection
  • BMS 6S 7S 8S 9S 10S 11S 12S 13S 4.2V 25A Adjustable BMS Lithium 18650 Protection
  • BMS 6S 7S 8S 9S 10S 11S 12S 13S 4.2V 25A Adjustable BMS Lithium 18650 Protection
  • BMS 6S 7S 8S 9S 10S 11S 12S 13S 4.2V 25A Adjustable BMS Lithium 18650 Protection

Feature: 1：100% brand new and high quality 18650 Lipo Li-ion Battery Protection Charging Board 2：25A Adjustable BMS 3：Over charge recover voltage: MIN:4.14V TYP:4.19V MAX:4.24V 4：Over discharge detection voltage : MIN:2.72V TYP:2.8V MAX:2.88V 5：Over discharge recover voltage: MIN:2.9V TYP:3V MAX:3.1V 6：Over charge detection current: MIN:32A TYP:40A MAX:48A 7：Over charge detection delay time: MIN:700mS TYP:1000mS MAX:1300mS 8：Over charge current protection delay time: MIN:mS TYP:16mS MAX:20mS 9：Over disrcharge current detection current : MIN:54A TYP:60A MAX:66A 10：Over distcharge current protection delay time: MIN:18mS TYP:24mS MAX:30mS 11：Idle current : 25uA 12：temperature protection: Yes 13：Over current protection : Cut load 14：discharge current: 18A 15：Over charge detection voltage: MIN:4.23V TYP:4.25V MAX:4.27V Package Included： BMS 6S 7S 8S 9S 10S 11S 12S 13S 4.2V 25A Adjustable BMS The following is an example for BMS 7S: The following is an example of BMS 13S
